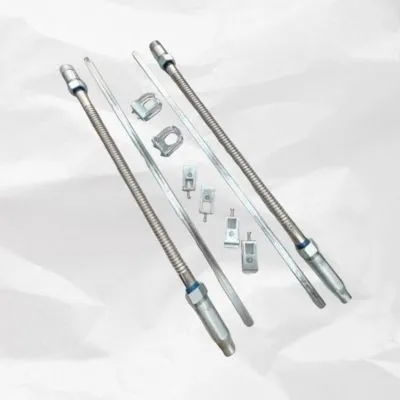

Flexible Hose
🔥 Rated Working pressure: 175 PSI (Max. 300 PSI)
🔥 Maximum Bend Radius: 4” & 8”
🔥 Temperature: 225° F
🔥 K-Factor: 5.6 GPM (½” Outlet), 11.2 GPM & 8GPM (¾” Outlet)
|
|
|
|---|---|
|
Length
|
700mm, 1000mm, 1200mm, 1500mm, 1800mm
|
|
Reducing Nipple Dia
|
½”, ¾” NPT or BSPT (Straight or 90 Degree Elbow)
|
|
Type
|
Unbraided, Braided (ø 26.8), Braided (ø 28.0)
|

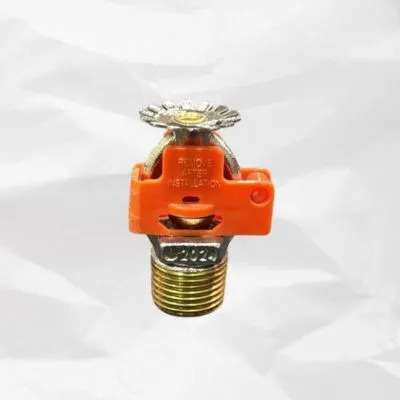

Pendent Type Sprinkler
🔥 UL Listed
🔥 Made Of Bronze
🔥 Standard Response
🔥 Maximum Working Pressure 175 Psi (12 Bar)
|
|
|
|---|---|
|
Hazardous Area
|
Moderate (5 mm, Glass Bulb)
|
|
Rated Temperature
|
Sprinkler: 57°, 68°, 79°, 93°
|
|
K-Factor
|
K: 5.6 (80 LPM)
|
|
Inlet Connection
|
1/2” NPT
|
|
Finish
|
Natural Brass, Chrome Plated
|

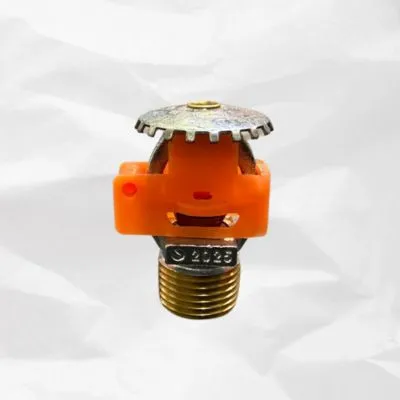

Upright Type Sprinkler
🔥 UL Listed
🔥 Made Of Bronze
🔥 Standard Response
🔥 Maximum Working Pressure 175 Psi (12 Bar)
|
|
|
|---|---|
|
Hazardous Area
|
Moderate (5 mm, Glass Bulb)
|
|
Rated Temperature
|
Sprinkler: 57°, 68°, 79°, 93°
|
|
K-Factor
|
K: 5.6 (80 LPM)
|
|
Inlet Connection
|
1/2” NPT
|
|
Finish
|
Natural Brass, Chrome Plated
|
Concealed Type Sprinkler
🔥 UL Listed
🔥 Made Of Bronze
🔥 Standard Response
🔥 Cover Plates Are Supplied
🔥 Maximum Working Pressure 175 Psi (12 Bar)
|
|
|
|---|---|
|
Hazardous Area
|
Moderate (5 mm, Glass Bulb)
|
|
Rated Temperature
|
Sprinkler: 57°, 68°, 79°, 93° Cover: 57°, 68°
|
|
K-Factor
|
K: 5.6 (80 LPM)
|
|
Inlet Connection
|
1/2” NPT
|
|
Finish
|
Natural Brass, Chrome Plated
|

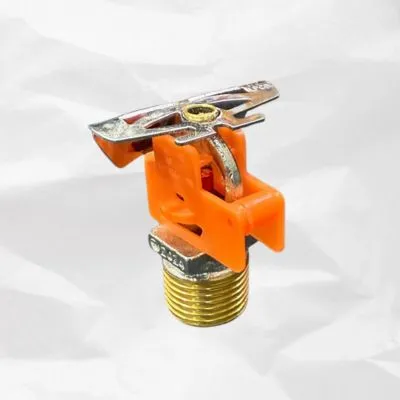

Sidewall Type Sprinkler
🔥 UL Listed
🔥 Made Of Bronze
🔥 Standard Response
🔥 Maximum Working Pressure 175 Psi (12 Bar)
|
|
|
|---|---|
|
Hazardous Area
|
Moderate (5 mm, Glass Bulb)
|
|
Rated Temperature
|
Sprinkler: 57°, 68°, 79°, 93°
|
|
K-Factor
|
K: 5.6 (80 LPM)
|
|
Inlet Connection
|
1/2” NPT
|
|
Finish
|
Natural Brass, Chrome Plated
|

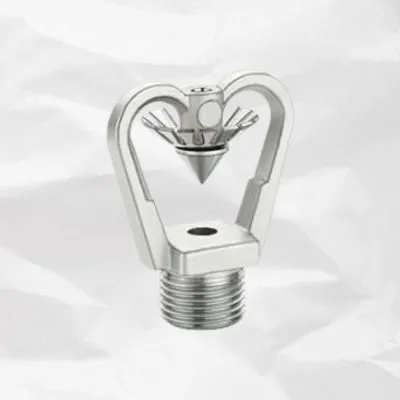

Spray Nozzle
🔥 Directional Spray Nozzle with cone shaped spray pattern.
🔥 Spray Nozzles are designed to produce extremely uniform coverage.
🔥 Suitable for a minimum working pressure of 7 PSI (0.5 Bar) and maximum working pressure of 175 PSI (12 Bar).
🔥 Wide Range of K-Factor and Spray Angle are available.
🔥 Available in SS316 construction.
|
|
|
|---|---|
|
Response
|
¾” Size
|
|
Hazardous Area
|
BSP / NPT / NH Threads
|
|
Rated Temperature
|
18 22 23 26 32 42
|
|
K-Factor
|
75º 80º 90º 100º 115º 120º
|
|
Inlet Connection
|
Brass, Stainless Steel
|
|
Finish
|
Natural Finish, Chromium Finish
|

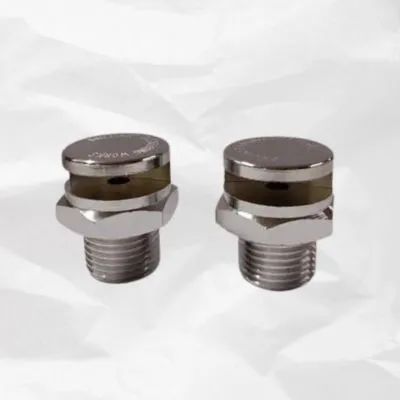

Tank Nozzle
🔥 Material of Construction – Forged Brass / Stainless stee
🔥 Inlet – 1/2″ BSP/ NPT/NH threaded
|
|
|
|---|---|
|
Description
|
½” Size
|
|
Inlet
|
BSP / NPT / NH Threads
|
|
K-Factor
|
23 / 30 / 37 / 45 / 53 / 72
|
|
Material of Construction
|
Forged Brass, Stainless Steel
|
|
Finish
|
Natural, Chrome Finish
|
